Workflows and processors

Understanding Cyoda JSON workflow configurations.

Overview

Cyoda workflows define finite, distributed state machines that govern the lifecycle of business entities in an event-driven environment. Each entity progresses through a sequence of states based on defined transitions, criteria, and processing rules.

Use gRPC for compute nodes

When implementing processors or criteria services, prefer gRPC over HTTP. gRPC preserves audit hygiene and simplifies authorization. See APIs and surfaces for the decision rationale.

The platform supports adaptable entity modeling, allowing business logic to evolve through configuration rather than implementation changes. Workflows declare the set of states, valid transitions, and associated processing steps while preserving immutable persistence for auditability.

Workflow Architecture

Core Components

1. States: Lifecycle stages of an entity
2. Transitions: Directed changes between states
3. Criteria: Conditional logic for transition eligibility
4. Processors: Executable logic triggered during transitions

Configuration Schema

You can find the workflow schema in the API reference. See the workflow import endpoints for complete schema specifications. Here we explain the structure and meaning of each element.

Workflow Object

{
  "version": "1.3",
  "name": "Workflow Name",
  "desc": "Workflow description",
  "initialState": "StateName",
  "active": true,
  "criterion": {},
  "states": {}
}

Attributes

• version: Workflow schema MAJOR.MINOR version. The current version is "1.3" (cyoda-go v0.8.3); the server accepts "1.1" through "1.3" and stamps the current version on export. Malformed values such as "1" or "1.0" are rejected at import. Run cyoda help workflows schema-version for the authoritative supported range.
• name: Identifier for the workflow. Must be unique per entity model.
• desc: Detailed description of the workflow
• initialState: Starting point for new entities
• active: Indicates whether the workflow is active
• criterion: Optional criterion for selecting which workflow applies to a given entity. Uses the same condition types as transition criteria (simple, group, function). When multiple workflows are defined for a model, the platform evaluates each workflow’s criterion against the entity to determine which workflow governs it.
• states: Map of state names to state definitions

Multiple Workflows per Model

An entity model can have multiple workflows, each with its own criterion at the workflow level. When an entity is created, the platform evaluates each active workflow’s criterion to select the applicable workflow. The platform evaluates active workflows in the order they are defined and uses the first whose criterion matches (or the first with no criterion, which matches unconditionally). This allows different processing paths for different categories of entities within the same model.

Annotations

Workflows, states, and transitions each accept an optional annotations object — arbitrary client-owned JSON metadata that the engine stores and round-trips faithfully but never interprets. Use it to attach concerns that belong to your application rather than the state machine: display labels and UI hints, permitted roles for application-level RBAC, or routing tags consumed by your own tooling.

{

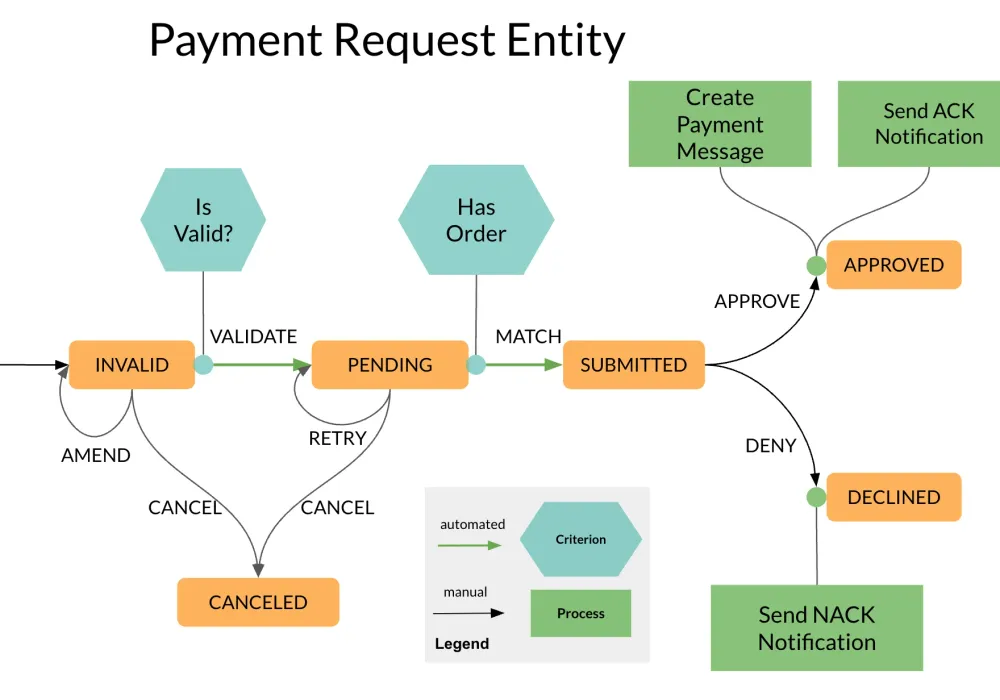

  "version": "1.3",
  "name": "Payment Request Workflow",
  "initialState": "INVALID",
  "active": true,
  "annotations": {
    "ui": { "color": "#0aa7c2", "icon": "payment" },
    "rbac": { "editRoles": ["payments-admin"] }
  },
  "states": {
    "INVALID": {
      "annotations": { "label": "Needs validation" },
      "transitions": []
    }
  }
}

Each annotations value must be a JSON object and is capped at 64 KB per field. The engine never reads these values; they are yours to produce and consume.

As of workflow schema 1.2, the same annotations bag extends to the two elements that previously lacked it:

• Processors carry an embedded annotations object.
• Criteria carry a sibling criterionAnnotations object on the workflow and on each transition — the criterion tree itself round-trips verbatim and is never parsed to attach metadata.

Two well-known optional keys are recognised uniformly across all five element types (workflow, state, transition, processor, criteria) for renderer and condition-builder use:

• displayName — a short human label;
• description — a longer explanation.

The same rules apply everywhere: each value is a JSON object, capped at 64 KB, stored and re-emitted compacted, and never interpreted by the engine. Processor annotations are additionally stripped before dispatch and never reach compute members. This is an additive change — every existing 1.1 payload remains valid.

Import and Export

Workflows are managed via import and export API endpoints on the entity model. The import request supports three modes that control how existing workflows are reconciled with the payload:

• MERGE (default): Incremental update. Workflows with matching names are updated; unspecified workflows remain unchanged.
• REPLACE: Removes all existing workflows for the entity model and retains only the imported ones. Also deletes all unused processors and criteria.
• ACTIVATE: Similar to REPLACE, but deactivates (rather than deletes) existing workflows and transitions not included in the import. Unused processors and criteria are preserved.

See API reference for endpoint details and the full request/response schemas.

Strict validation

From cyoda-go v0.8.1 the import endpoint validates payloads strictly and rejects the whole request rather than silently absorbing mistakes. A payload is rejected when it:

• declares a schema version outside the supported range (currently "1.1"–"1.3") or malformed such as "1"/"1.0" (rejected with WORKFLOW_SCHEMA_VERSION_UNSUPPORTED);
• carries unknown or misspelled fields (e.g. transtions);
• references a dangling state or reuses a name;
• relies on an empty array to mean “leave unchanged” in REPLACE or ACTIVATE mode — an empty array now deletes.

Regenerate any import payloads authored against the older, lenient contract before upgrading.

States

States describe lifecycle phases for entities. Names must start with a letter and use only alphanumeric characters, underscores, or hyphens.

Format

"StateName": {
  "transitions": []
}

Special States

• Initial state: The initial state of a new entity
• Terminal States: States with no outgoing transitions

Transitions

Transitions define allowed movements between states, optionally gated by conditions and supported by executable logic.

Format

{
  "name": "TransitionName",
  "next": "TargetState",
  "manual": true,
  "disabled": false,
  "criterion": {},
  "processors": [],
  "schedule": {}          // one of delayMs | function
}

Attributes

• name: Name of the transition (required)
• next: Target state code (required)
• manual: Determines if the transition is manual or automated (required)
• disabled: Marks the transition as inactive
• criterion: Optional condition for eligibility
• processors: Optional processing steps
• schedule: Optional timer that fires the transition automatically — see Scheduled transitions. Mutually exclusive with manual: true.

Manual vs Automated Transitions

Transitions may be either manual or automated, and are guarded by criteria that determine their eligibility. When an entity enters a new state, the first eligible automated transition is executed immediately within the same transaction. This continues recursively until no further automated transitions are applicable, resulting in a stable state. Each transition may trigger one or more attached processes, which can run synchronously or asynchronously, either within the current transaction or in a separate one. This forms the foundation for event flow automation, where processors may create or mutate entities in response, allowing a single transition to initiate a cascade of events and function executions across the system. CYODA_MAX_STATE_VISITS configures the per-state visit limit within a single cascade (default 10). A separate hard-coded safety cap of 100 steps limits total cascade depth across all states, preventing runaway automatic-transition chains.

Scheduled transitions

A third kind of transition fires on a timer. Give a transition a schedule object and it fires on its own at a computed time, driven by a background scheduler independently of any API call or cascade. Timers are durable, stored by the backend (memory, SQLite, or PostgreSQL) and armed or cancelled atomically with the entity write that triggered them.

Use it for deadlines and delays that belong to the domain: auto-close a ticket after 24 hours of inactivity, escalate an unpaid invoice at its due date, expire a reservation, or poll an external system on a fixed cadence.

There are two timing modes, and exactly one of them is required whenever schedule is present. schedule is also mutually exclusive with manual: true — a scheduled transition is by definition not manually fired.

Static timing — the same delay for every entity

delayMs fires the transition delayMs after the entity enters the source state:

{
  "name": "AutoClose",
  "next": "Closed",
  "manual": false,
  "schedule": {
    "delayMs": 86400000,
    "timeoutMs": 600000
  }
}

• delayMs (integer, required in this mode) — milliseconds between source-state entry and the scheduled time. Must be greater than 0.
• timeoutMs (integer, optional) — how late the scheduler may still pick the timer up before giving up. It is not a second delay: it measures lateness past the scheduled time, independent of delayMs. Absent means no limit; an explicit 0 is strictest, dropping the timer on any lateness at all.

Per-entity timing — a Function callout

A static delay fires every entity at the same offset. When the deadline lives on the entity — an expiresAt field, a per-customer SLA, a user-chosen reminder — use function instead, which asks a compute node to compute the time per entity:

{
  "name": "Escalate",
  "next": "Escalated",
  "manual": false,
  "schedule": {
    "function": {
      "name": "compute-escalation-time",
      "resultKind": "Schedule",
      "calculationNodesTags": "escalation-service",
      "attachEntity": true
    }
  }
}

• name (required) — the registered function name.
• resultKind (required) — must be "Schedule".
• calculationNodesTags (required) — comma-separated routing tags, exactly as for a processor or criterion.
• attachEntity (optional, default true) — whether the entity payload is attached to the request.
• context (optional) — a pass-through string forwarded verbatim as the request’s parameters.
• responseTimeoutMs (optional) — response timeout for this callout.

This is a Function callout — a third shape alongside Processor (mutates the entity) and Criterion (returns a boolean) that returns a declared typed value and mutates nothing. See handling function requests for the compute-node side. The node replies with a Schedule result:

{ "fireAfterMs": 3600000, "expireAfterMs": 600000 }

• Fire time (required) — exactly one of fireAt (absolute epoch-ms) or fireAfterMs (relative to arm time). A time already in the past is not an error; the transition is simply due immediately.
• Expiry (optional) — at most one of expireAt (absolute) or expireAfterMs (relative to the resolved fire time, not to arm time). Both absent means no expiry. A resolved expiry after the fire time becomes the timeoutMs lateness window — the gap between the two.

The callout runs inside your write

The schedule function is invoked synchronously, inside the transaction of the entity write that arms it. A callout failure therefore fails that write: an unreachable, disconnected, or timed-out compute node returns a retryable 503 (NO_COMPUTE_MEMBER_FOR_TAG, DISPATCH_TIMEOUT, COMPUTE_MEMBER_DISCONNECTED), and a malformed or wrong-kind result returns 500 SCHEDULE_FUNCTION_INVALID_RESULT. No state change commits against a transition that could not be scheduled — there is no silent skip.

The one case where the write still succeeds is born expired: if the resolved expiry falls at or before the resolved fire time, the transition is simply never armed, any prior scheduling for it is cancelled, and a SCHEDULED_TRANSITION_EXPIRE audit event is recorded.

How the timer behaves

Both timing modes share the same engine behaviour.

Arming happens on every settled write. The timer is armed when the entity enters the source state — and re-armed on every subsequent write that leaves it in that state, including a routine data update or a self-loop. Each re-arm fully replaces the previous scheduling decision, and in function mode it makes a fresh callout.

Busy entities never fire

Because arming resets on every settled write, an entity written more often than its scheduled interval never reaches its fire time. If you are modelling “escalate 30 minutes after entry”, routine touch-writes on a busy entity will postpone that escalation indefinitely — and, in function mode, make a callout every time. Model deadlines that must survive activity as an absolute fireAt computed from a field on the entity, not as a relative delay.

The criterion is evaluated exactly once, at fire time. A true (or absent) criterion fires the transition normally — processors run, the state advances, TRANSITION_MAKE is recorded. A false criterion declines it: the entity stays put and the timer is not retried. This is a deliberate one-shot, not a poll.

Lateness is bounded by timeoutMs. If the scheduler picks up a due timer more than timeoutMs past its scheduled time, the timer is dropped without evaluating the criterion and the transition never fires. With no timeoutMs, there is no upper bound — it fires whenever it is eventually picked up.

A scheduled transition is not manually fireable. Naming one in an explicit transition request returns 400 TRANSITION_NOT_FOUND, with a detail explaining that it fires automatically. To allow early firing, give the state an ordinary manual transition alongside the scheduled one.

Everything is audited. Arming, firing, expiry, and cancellation each emit a dedicated event — SCHEDULED_TRANSITION_ARM, SCHEDULED_TRANSITION_FIRE (alongside the ordinary TRANSITION_MAKE), SCHEDULED_TRANSITION_EXPIRE, and SCHEDULED_TRANSITION_CANCEL when the entity leaves the source state before the timer fires. A loopback that re-arms the same state emits only ARM.

One-shot, or polling?

Since the criterion is evaluated once per fire, there is no built-in retry-until-true. Three shapes cover the common cases:

• A deadline gate — a criterion on the scheduled transition. At the deadline, fire if the condition holds, otherwise abandon. A false criterion is a deliberate decline.
• A recurring heartbeat — an unconditional scheduled cycle (S1 →scheduled→ S2 →scheduled→ S1), which fires every delayMs, forever, for every entity in the cycle.
• Poll until a condition holds — an unconditional scheduled tick into a state whose ordinary (non-scheduled) transitions carry the condition and exit when it is met. The retry loop lives in the workflow structure, not in the timer.

The last two are cycles, and the import-time cycle detector rejects unguarded automated cycles by default — a delayed cycle is still a cycle. Set allowCycles: true on the import request body to accept one:

{
  "importMode": "REPLACE",
  "allowCycles": true,
  "workflows": []
}

Operational configuration

The scheduler runs on a coordinator elected across the cluster (by default the member with the lowest node ID), which scans for due timers and distributes them to peers. Seven environment variables tune it — CYODA_SCHEDULER_ENABLED, CYODA_SCHEDULER_SCAN_INTERVAL, CYODA_SCHEDULER_BATCH_SIZE, CYODA_SCHEDULER_DISTRIBUTION, CYODA_SCHEDULER_COORDINATOR, CYODA_SCHEDULER_REDISPATCH_BACKOFF, and CYODA_SCHEDULER_EXPIRY_GRACE. See the configuration reference, or run cyoda help config scheduler.

One of these matters for correctness rather than throughput: CYODA_SCHEDULER_EXPIRY_GRACE (default 100ms) is a grace band above timeoutMs that separates expiry from firing, so clock skew between nodes cannot produce a contradictory expire-and-fire. Size it to at least your maximum expected inter-node skew.

Criteria

Criteria define logic that determines if a transition is permitted. A criterion can be one of five types:

1. Simple: Evaluates a single condition on entity data
2. Group: Combines multiple criteria with logical operators
3. Function: Calls an external function for evaluation (delegated to a calculation node via gRPC)
4. Lifecycle: Evaluates a condition on entity lifecycle properties (state, creation date, previous transition)
5. Array: Evaluates a condition against an array of values

Simple Criteria

Simple criteria evaluate a single condition directly on entity data using JSONPath expressions. They are executed directly on the processing node, without involving external compute nodes.

"criterion": {
  "type": "simple",
  "jsonPath": "$.amount",
  "operation": "GREATER_THAN",
  "value": 1000
}

Simple Criteria Attributes

• jsonPath: JSONPath expression to extract the value from entity data
• operation: Comparison operator (see Operator Types below). Also accepts the alias operatorType.
• value: The value to compare against

Group Criteria

Group criteria combine multiple conditions using logical operators.

"criterion": {
  "type": "group",
  "operator": "AND",
  "conditions": [
    {
      "type": "simple",
      "jsonPath": "$.status",
      "operation": "EQUALS",
      "value": "VALIDATED"
    },
    {
      "type": "simple",
      "jsonPath": "$.amount",
      "operation": "GREATER_THAN",
      "value": 500
    }
  ]
}

Group Criteria Attributes

• operator: Logical operator combining conditions (AND, OR, NOT)
• conditions: Array of criteria (can be simple, function, group, lifecycle, or array types — supports arbitrary nesting)

Function Criteria

Function criteria delegate evaluation to an external compute node via gRPC. The function must return a boolean result.

"criterion": {
  "type": "function",
  "function": {
    "name": "FunctionName",
    "config": {
      "attachEntity": true,
      "calculationNodesTags": "validation,data-quality",
      "responseTimeoutMs": 3000,
      "retryPolicy": "FIXED",
      "context": "optionalContext"
    },
    "criterion": {
      "type": "simple",
      "jsonPath": "$.preCheckField",
      "operation": "EQUALS",
      "value": true
    }
  }
}

Function Attributes

• name: The name of the function to execute (required)
• config: Configuration for the function call (optional):
• attachEntity: Whether to pass the entity data to the function
• calculationNodesTags: Comma-separated list of tags for routing to specific calculation nodes
• responseTimeoutMs: Response timeout in milliseconds
• retryPolicy: Retry policy for the function (e.g., "FIXED")
• context: Optional string parameter passed to the function for additional context or configuration. The context is passed “as is” with the event to the compute node. It can contain any sort of information that is relevant to the function’s execution, in any format. The interpretation is up to the function itself.
• criterion: Optional quick-exit criterion evaluated locally before calling the (potentially expensive) external function. If this local criterion evaluates to false, the function call is skipped entirely. Useful for avoiding unnecessary network round-trips when the result can be confidently determined from entity data.

Lifecycle Criteria

Lifecycle criteria evaluate conditions on entity lifecycle properties rather than entity data.

"criterion": {
  "type": "lifecycle",
  "field": "state",
  "operation": "EQUALS",
  "value": "VALIDATED"
}

Lifecycle Criteria Attributes

• field: Lifecycle field to evaluate — one of state, creationDate, lastUpdateTime, transitionForLatestSave (accepted under its older name previousTransition), transactionId, or id. Any other name is rejected at import with 400 VALIDATION_FAILED. (The same mistake in a search request body is 400 INVALID_FIELD_PATH — criteria are validated at import, searches at request time.)
• operation: Comparison operator
• value: The value to compare against

creationDate and lastUpdateTime are temporal and compare chronologically at millisecond resolution. They accept a coarser operand that upscales — "2024" or "2024-09" are valid against a full timestamp — and reject only an operand that parses into no temporal form at all.

Array Criteria

Array criteria evaluate a condition against an array of values.

"criterion": {
  "type": "array",
  "jsonPath": "$.category",
  "operation": "EQUALS",
  "value": ["electronics", "software", "services"]
}

Array Criteria Attributes

• jsonPath: JSONPath expression to the field
• operation: Comparison operator
• value: Array of string values to match against

Operator Types

The following comparison operators are available for simple, lifecycle, and array criteria:

Basic Comparison: EQUALS, NOT_EQUAL, IS_NULL, NOT_NULL, GREATER_THAN, LESS_THAN, GREATER_OR_EQUAL, LESS_OR_EQUAL, BETWEEN, BETWEEN_INCLUSIVE

String Operations (Case-Sensitive): CONTAINS, NOT_CONTAINS, STARTS_WITH, NOT_STARTS_WITH, ENDS_WITH, NOT_ENDS_WITH, MATCHES_PATTERN, LIKE

Case-Insensitive String Operations: IEQUALS, INOT_EQUAL, ICONTAINS, INOT_CONTAINS, ISTARTS_WITH, INOT_STARTS_WITH, IENDS_WITH, INOT_ENDS_WITH

IS_CHANGED and IS_UNCHANGED are change-generation operators rather than search predicates, and cyoda-go does not implement them. For the full evaluation model — type-directed comparison, null handling, the LIKE grammar — see predicate semantics; criteria and search share one kernel, so the rules are identical.

Processors

Processors implement custom logic to run during transitions. All processors are externalized — delegated to a calculation node over gRPC.

To fire a transition on a delay rather than on an API call or a cascade, you do not attach a processor: you put a schedule on the transition itself.

Externalized Processors

Externalized processors delegate execution to a calculation node via gRPC. This is the most common processor type.

{
  "type": "externalized",
  "name": "ProcessorName",
  "executionMode": "SYNC",
  "config": {
    "attachEntity": true,
    "calculationNodesTags": "tag1,tag2",
    "responseTimeoutMs": 5000,
    "retryPolicy": "FIXED",
    "context": "optionalContext"
  }
}

Externalized Processor Attributes

• type: "externalized" (discriminator)
• name: Name of the processor (required)
• executionMode: Execution mode (see below). Default: ASYNC_NEW_TX.
• config: Configuration for the processor call:
• attachEntity: Whether to attach entity data to the processor call. Defaults to true as of cyoda-go v0.8.3 — a processor that omits the field is imported with the payload attached, matching schedule.function and the criterion function callout. Set it to false explicitly to opt out.
• calculationNodesTags: Comma-separated list of tags for routing to specific calculation nodes
• responseTimeoutMs: Response timeout in milliseconds
• retryPolicy: Retry policy for the processor
• context: Additional context passed to the processor
• asyncResult: Whether to await the result asynchronously, outside of the transaction
• crossoverToAsyncMs: Crossover delay in milliseconds to switch to asynchronous processing (effective only when asyncResult is true)

Execution Modes

• SYNC: Inline execution within the transaction. Runs immediately and blocks the current processing thread on the same node.
• ASYNC_SAME_TX: Deferred within the current transaction. Commits or rolls back atomically with the triggering transition.
• ASYNC_NEW_TX: Deferred execution in a separate, independent transaction. Default mode.

Processors should be idempotent; failed ASYNC_NEW_TX processors may be retried.

Synchronous executions run immediately and block the current processing thread on the same node, making them local and non-distributed. In contrast, asynchronous executions are scheduled for deferred processing and can be handled by any node in the cluster, enabling horizontal scalability and workload distribution, albeit with possibly somewhat higher latency.

Calculation Nodes Tags

As described in the Architecture section, the execution of processors and criteria is delegated to client compute nodes, i.e. your own infrastructure running your business logic. These nodes can be organized into groups and tagged based on their roles or capabilities. By optionally setting the calculationNodesTags property in a processor or criterion definition, you can direct execution to specific groups, giving you fine-grained control over workload distribution across your compute environment.

Example: Payment Request Workflow

This workflow models the lifecycle of a payment request, covering validation, matching, approval, and notification handling.

It starts in the INVALID state, where the request is either amended or validated. If validation succeeds and a matching order exists, the request advances automatically to the SUBMITTED state. If not, it moves to PENDING, where it awaits a matching order or may be retried manually. Requests in SUBMITTED require an approval decision, leading either to APPROVED, which triggers asynchronous processing like payment message creation and ACK notifications, or to DECLINED, which emits a rejection (NACK) notification. Manual amend and retry transitions at key stages allow users or systems to correct or re-evaluate the request.

The following section walks through the configuration step by step.

Step 1: Workflow Metadata

{
  "version": "1.3",
  "name": "Payment Request Workflow",
  "desc": "Payment request processing workflow with validation, approval, and notification states",
  "initialState": "INVALID",
  "active": true
}

Step 2: Define States and Transitions

Start by defining the overall structure of states and transitions.

{
  "version": "1.3",
  "name": "Payment Request Workflow",
  "desc": "Payment request processing workflow with validation, approval, and notification states",
  "initialState": "INVALID",
  "active": true,
  "states": {
    "INVALID": {
      "transitions": [
        {
          "name": "VALIDATE",
          "next": "PENDING",
          "manual": false,
          "disabled": false
        },
        {
          "name": "AMEND",
          "next": "INVALID",
          "manual": true,
          "disabled": false
        },
        {
          "name": "CANCEL",
          "next": "CANCELED",
          "manual": true,
          "disabled": false
        }
      ]
    },
    "PENDING": {
      "transitions": [
        {
          "name": "MATCH",
          "next": "SUBMITTED",
          "manual": false,
          "disabled": false
        },
        {
          "name": "RETRY",
          "next": "PENDING",
          "manual": true,
          "disabled": false
        },
        {
          "name": "CANCEL",
          "next": "CANCELED",
          "manual": true,
          "disabled": false
        }
      ]
    },
    "SUBMITTED": {
      "transitions": [
        {
          "name": "APPROVE",
          "next": "APPROVED",
          "manual": true,
          "disabled": false
        },
        {
          "name": "DENY",
          "next": "DECLINED",
          "manual": true,
          "disabled": false
        }
      ]
    },
    "APPROVED": {
      "transitions": []
    },
    "DECLINED": {
      "transitions": []
    },
    "CANCELED": {
      "transitions": []
    }
  }
}

Step 3: Add Criteria

We add criteria to the VALIDATE and MATCH transitions:

{
  "version": "1.3",
  "name": "Payment Request Workflow",
  "desc": "Payment request processing workflow with validation, approval, and notification states",
  "initialState": "INVALID",
  "active": true,
  "states": {
    "INVALID": {
      "transitions": [
        {
          "name": "VALIDATE",
          "next": "PENDING",
          "manual": false,
          "disabled": false,
          "criterion": {
            "type": "function",
            "function": {
              "name": "IsValid",
              "config": {
                "attachEntity": true
              }
            }
          }
        },
        {
          "name": "AMEND",
          "next": "INVALID",
          "manual": true,
          "disabled": false
        },
        {
          "name": "CANCEL",
          "next": "CANCELED",
          "manual": true,
          "disabled": false
        }
      ]
    },
    "PENDING": {
      "transitions": [
        {
          "name": "MATCH",
          "next": "SUBMITTED",
          "manual": false,
          "disabled": false,
          "criterion": {
            "type": "function",
            "function": {
              "name": "HasOrder",
              "config": {
                "attachEntity": true
              }
            }
          }
        },
        {
          "name": "RETRY",
          "next": "PENDING",
          "manual": true,
          "disabled": false
        },
        {
          "name": "CANCEL",
          "next": "CANCELED",
          "manual": true,
          "disabled": false
        }
      ]
    },
    "SUBMITTED": {
      "transitions": [
        {
          "name": "APPROVE",
          "next": "APPROVED",
          "manual": true,
          "disabled": false
        },
        {
          "name": "DENY",
          "next": "DECLINED",
          "manual": true,
          "disabled": false
        }
      ]
    },
    "APPROVED": {
      "transitions": []
    },
    "DECLINED": {
      "transitions": []
    },
    "CANCELED": {
      "transitions": []
    }
  }
}

Step 4: Add Processors

We add two processors to the APPROVE transition in the SUBMITTED state, respectively, to finish the job.

{
  "version": "1.3",
  "name": "Payment Request Workflow",
  "desc": "Payment request processing workflow with validation, approval, and notification states",
  "initialState": "INVALID",
  "active": true,
  "states": {
    "INVALID": {
      "transitions": [
        {
          "name": "VALIDATE",
          "next": "PENDING",
          "manual": false,
          "disabled": false,
          "criterion": {
            "type": "function",
            "function": {
              "name": "IsValid",
              "config": {
                "attachEntity": true
              }
            }
          }
        },
        {
          "name": "AMEND",
          "next": "INVALID",
          "manual": true,
          "disabled": false
        },
        {
          "name": "CANCEL",
          "next": "CANCELED",
          "manual": true,
          "disabled": false
        }
      ]
    },
    "PENDING": {
      "transitions": [
        {
          "name": "MATCH",
          "next": "SUBMITTED",
          "manual": false,
          "disabled": false,
          "criterion": {
            "type": "function",
            "function": {
              "name": "HasOrder",
              "config": {
                "attachEntity": true
              }
            }
          }
        },
        {
          "name": "RETRY",
          "next": "PENDING",
          "manual": true,
          "disabled": false
        },
        {
          "name": "CANCEL",
          "next": "CANCELED",
          "manual": true,
          "disabled": false
        }
      ]
    },
    "SUBMITTED": {
      "transitions": [
        {
          "name": "APPROVE",
          "next": "APPROVED",
          "manual": true,
          "disabled": false,
          "processors": [
            {
              "type": "externalized",
              "name": "Create Payment Message",
              "executionMode": "ASYNC_NEW_TX",
              "config": { "attachEntity": true }
            },
            {
              "type": "externalized",
              "name": "Send ACK Notification",
              "executionMode": "ASYNC_NEW_TX",
              "config": { "attachEntity": false }
            }
          ]
        },
        {
          "name": "DENY",
          "next": "DECLINED",
          "manual": true,
          "disabled": false,
          "processors": [
            {
              "type": "externalized",
              "name": "Send NACK Notification",
              "executionMode": "ASYNC_NEW_TX",
              "config": { "attachEntity": false }
            }
          ]
        }
      ]
    },
    "APPROVED": {
      "transitions": []
    },
    "DECLINED": {
      "transitions": []
    },
    "CANCELED": {
      "transitions": []
    }
  }
}

Best Practices

• Use domain-specific state names
• Match transition granularity to business needs
• Define recovery and cancellation paths
• Prefer asynchronous processing for external dependencies
• Use self-transitions for triggering workflow automation on exit from the current state

Platform Integration

Cyoda workflows integrate directly with:

• Entity Models: Determine which workflows apply to which data types
• Execution Engine: Drives state and transition logic
• External Functions: Implement validation and custom behavior
• Event System: Triggers automated transitions on event reception
